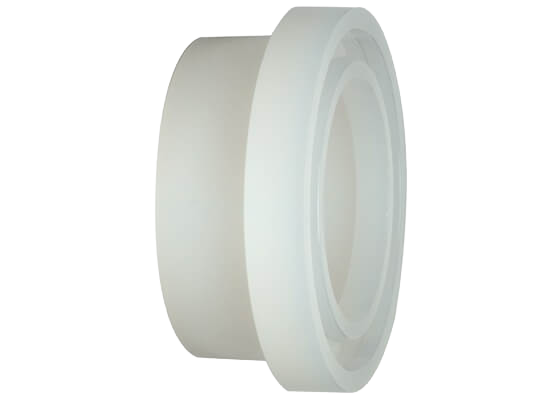

Flange adaptor jointing face with O-ring groove, SYGEF Standard, PN16
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PVDF
- Counterpart: flange adaptor metric or ANSI
- Counterpart: flange adaptor with jointing face serrated
- Gasket: O-ring EPDM No. 48 41 01, FKM No. 49 41 01
Product variants
| Product code | d [mm] | DN [mm] | PN | |
|---|---|---|---|---|
| 735810106 | 20 | 15 | 16 |
Inquiry Enter quantityFlange adaptor jointing face with O-ring groove, SYGEF Standard, PN16 · Product code 735810106 |
| 735810107 | 25 | 20 | 16 |
Inquiry Enter quantityFlange adaptor jointing face with O-ring groove, SYGEF Standard, PN16 · Product code 735810107 |
| 735810108 | 32 | 25 | 16 |
Inquiry Enter quantityFlange adaptor jointing face with O-ring groove, SYGEF Standard, PN16 · Product code 735810108 |
| 735810109 | 40 | 32 | 16 |
Inquiry Enter quantityFlange adaptor jointing face with O-ring groove, SYGEF Standard, PN16 · Product code 735810109 |
| 735810110 | 50 | 40 | 16 |
Inquiry Enter quantityFlange adaptor jointing face with O-ring groove, SYGEF Standard, PN16 · Product code 735810110 |
| 735810111 | 63 | 50 | 16 |
Inquiry Enter quantityFlange adaptor jointing face with O-ring groove, SYGEF Standard, PN16 · Product code 735810111 |
