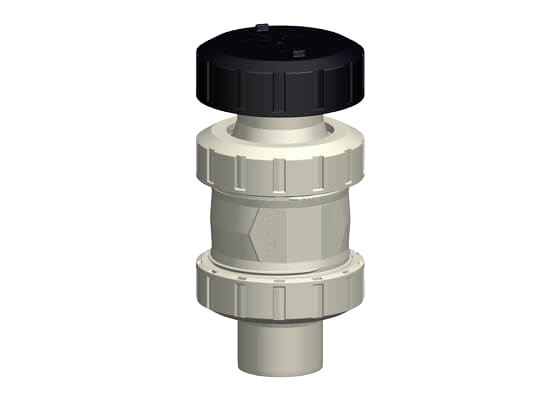

Ventilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál tělesa: PP-H
- Až do DN50 s ochranným víčkem v provedení PP-GF
- Materiál plováku: PP-H
- Konstruováno pro snadnou montáž a demontáž
- Pevná instalační délka
Product variants
| Product code | d [mm] | DN [mm] | PN 1 [bar] | |
|---|---|---|---|---|
| 167591041 EPDM | 16 | 10 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591041 EPDM |
| 167591042 EPDM | 20 | 15 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591042 EPDM |
| 167591043 EPDM | 25 | 20 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591043 EPDM |
| 167591044 EPDM | 32 | 25 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591044 EPDM |
| 167591045 EPDM | 40 | 32 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591045 EPDM |
| 167591046 EPDM | 50 | 40 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591046 EPDM |
| 167591047 EPDM | 63 | 50 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591047 EPDM |
| 167591048 EPDM | 75 | 65 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591048 EPDM |
| 167591049 EPDM | 90 | 80 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591049 EPDM |
| 167591050 EPDM | 110 | 100 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591050 EPDM |
| 167591051 FKM | 16 | 10 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591051 FKM |
| 167591052 FKM | 20 | 15 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591052 FKM |
| 167591053 FKM | 25 | 20 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591053 FKM |
| 167591054 FKM | 32 | 25 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591054 FKM |
| 167591055 FKM | 40 | 32 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591055 FKM |
| 167591056 FKM | 50 | 40 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591056 FKM |
| 167591057 FKM | 63 | 50 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591057 FKM |
| 167591058 FKM | 75 | 65 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591058 FKM |
| 167591059 FKM | 90 | 80 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591059 FKM |
| 167591060 FKM | 110 | 100 | 10 |
Inquiry Enter quantityVentilating and bleed valve type 591 PROGEF Standard, with socket fusion spigots metric, metric · Product code 167591060 FKM |
