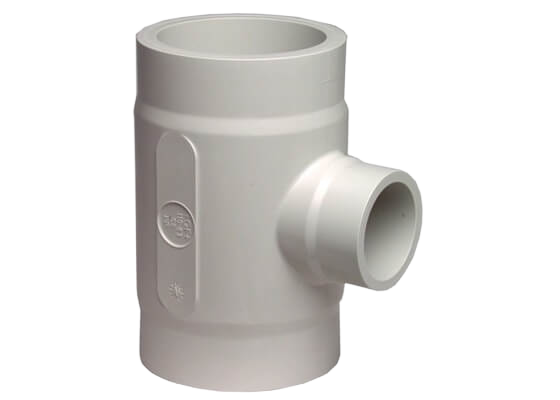

Tee 90° reduced PROGEF Standard, S5/SDR11
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
Material: PP-H
Conventional butt-welding according to DVS 2207
IR = Infrared welding compatible
¹ with IR welded reducer
Product variants
| Product code | # | d [mm] | d1 [mm] | PN | FM | |
|---|---|---|---|---|---|---|
| 727208351 | - | 63 | 32 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208351 |
| 727208350 | - | 63 | 40 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208350 |
| 727208352 | - | 63 | 50 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208352 |
| 727208353 | - | 75 | 32 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208353 |
| 727208354 | - | 75 | 50 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208354 |
| 727208355 | - | 75 | 63 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208355 |
| 727208357 | - | 90 | 50 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208357 |
| 727208358 | - | 90 | 63 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208358 |
| 727208359 | - | 90 | 75 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208359 |
| 727208360 | - | 110 | 32 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208360 |
| 727208361 | - | 110 | 50 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208361 |
| 727208362 | - | 110 | 63 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208362 |
| 727208363 | - | 110 | 75 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208363 |
| 727208364 | - | 110 | 90 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208364 |
| 727208665 | - | 125 | 63 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208665 |
| 727208066 | ¹ | 125 | 90 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208066 |
| 727208367 | ¹ | 125 | 110 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208367 |
| 727208068 | ¹ | 140 | 75 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208068 |
| 727208069 | ¹ | 140 | 90 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208069 |
| 727208371 | - | 160 | 63 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208371 |
| 727208372 | - | 160 | 75 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208372 |
| 727208373 | - | 160 | 90 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208373 |
| 727208370 | ¹ | 140 | 110 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208370 |
| 727208374 | - | 160 | 110 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208374 |
| 727208075 | - | 160 | 125 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208075 |
| 727208385 | ¹ | 200 | 160 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208385 |
| 727208086 | - | 200 | 180 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208086 |
| 727208388 | - | 225 | 90 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208388 |
| 727208389 | - | 225 | 110 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208389 |
| 727208391 | - | 225 | 160 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208391 |
| 727208093 | - | 250 | 160 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208093 |
| 727208071 | ¹ | 90 | 32 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208071 |
| 727208077 | ¹ | 180 | 63 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208077 |
| 727208078 | ¹ | 180 | 110 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208078 |
| 727208080 | ¹ | 315 | 160 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208080 |
| 727208356 | ¹ | 63 | 25 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208356 |
| 727208079 | ¹ | 315 | 110 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208079 |
| 727208081 | ¹ | 315 | 225 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208081 |
| 727208082 | ¹ | 315 | 250 | 10 | IR |
Inquiry Enter quantityTee 90° reduced PROGEF Standard, S5/SDR11 · Product code 727208082 |
