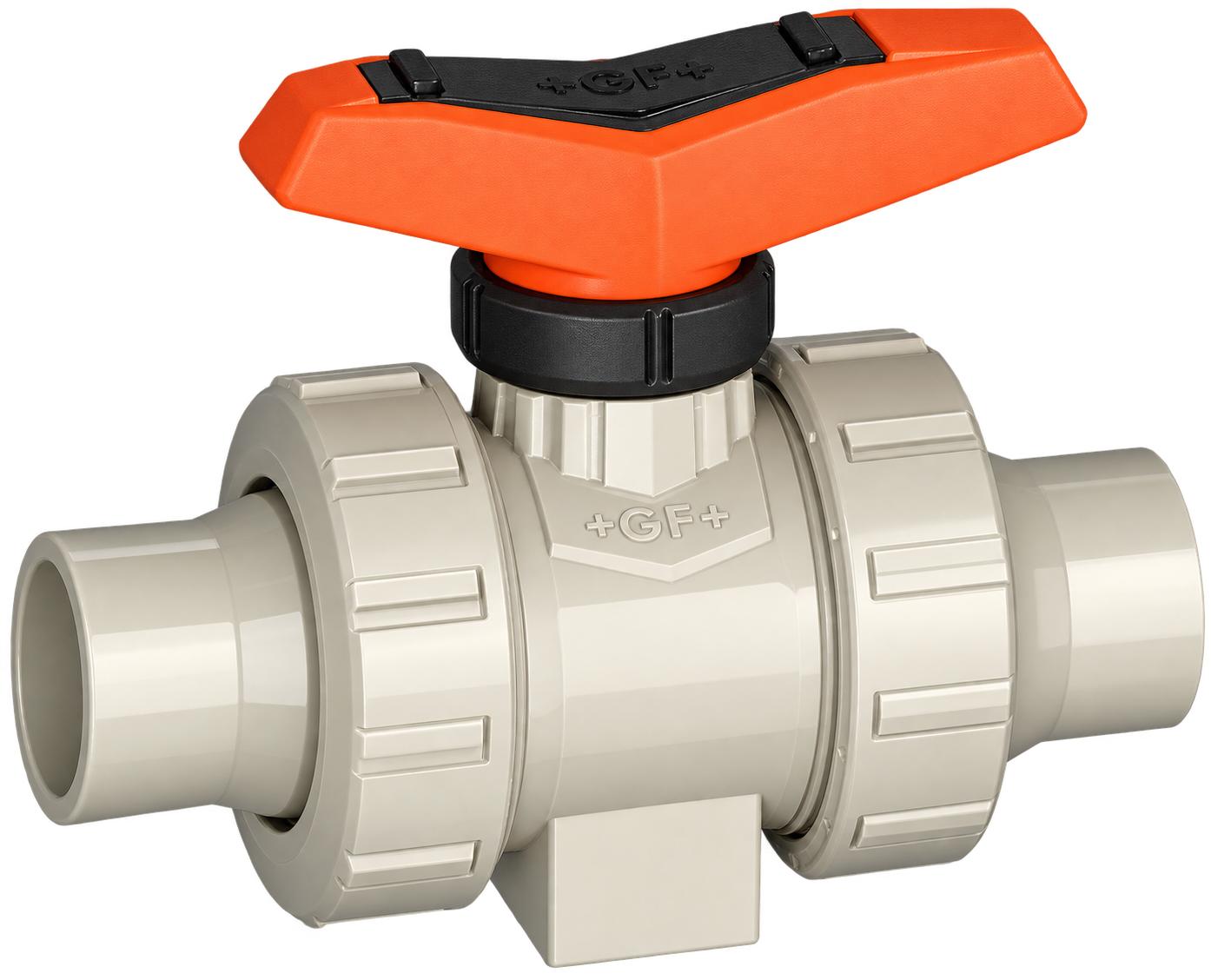

PROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
Lockable lever as standard
Ball seat PTFE
Integrated stainless steel mounting inserts
Z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
The inclusive 2 fusion socket valve ends are only available up to DN50.
Option:
Individual configuration of valves possible
Manual spring return lever "Dead man" (DN10-25)
Pneumatic or electric actuators from GF
Interface module for position feedback sensor with LED (PNP, NPN and NAMUR)
Product variants
| Product code | d [mm] | DN [mm] | Size [inch] | PN | kv-value (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 167546442 EPDM | 20 | 15 | 1/2 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546442 EPDM |
| 167546443 EPDM | 25 | 20 | 3/4 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546443 EPDM |
| 167546444 EPDM | 32 | 25 | 1 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546444 EPDM |
| 167546445 EPDM | 40 | 32 | 1 1/4 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546445 EPDM |
| 167546446 EPDM | 50 | 40 | 1 1/2 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546446 EPDM |
| 167546447 EPDM | 63 | 50 | 2 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546447 EPDM |
| 167546448 EPDM | 75 | 65 | 2 1/2 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546448 EPDM |
| 167546449 EPDM | 90 | 80 | 3 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546449 EPDM |
| 167546450 EPDM | 110 | 100 | 4 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546450 EPDM |
| 167546452 FKM | 20 | 15 | 1/2 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546452 FKM |
| 167546453 FKM | 25 | 20 | 3/4 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546453 FKM |
| 167546454 FKM | 32 | 25 | 1 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546454 FKM |
| 167546455 FKM | 40 | 32 | 1 1/4 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546455 FKM |
| 167546456 FKM | 50 | 40 | 1 1/2 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546456 FKM |
| 167546457 FKM | 63 | 50 | 2 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546457 FKM |
| 167546458 FKM | 75 | 65 | 2 1/2 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546458 FKM |
| 167546459 FKM | 90 | 80 | 3 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546459 FKM |
| 167546460 FKM | 110 | 100 | 4 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro PP-H With butt fusion spigots IR-Plus SDR11 ISO Inclusive 2 fusion socket valve ends · Product code 167546460 FKM |
