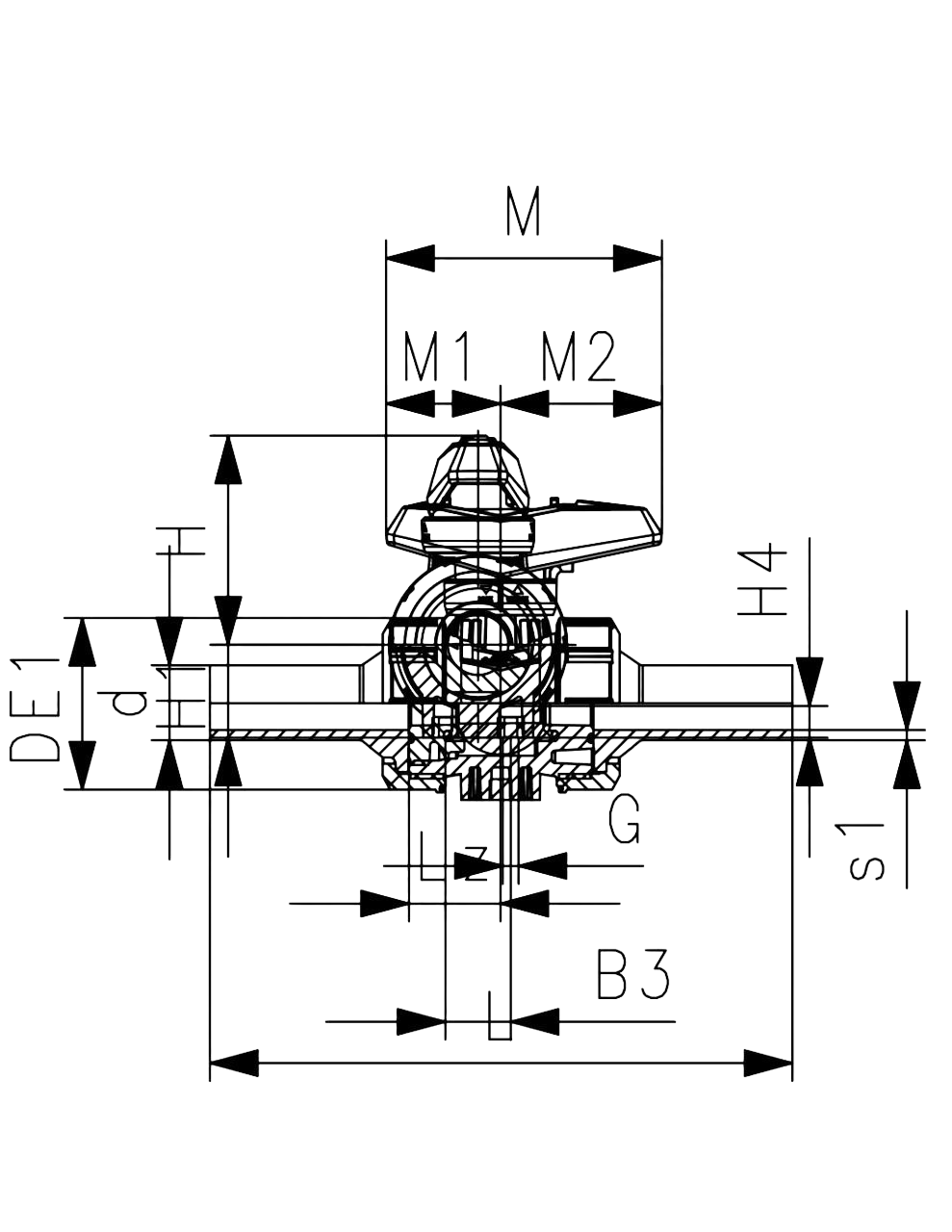

Ball valve type 546 Pro PROGEF Standard, with butt fusion spigots long PE100 PE100, SDR17.6 metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Lockable lever as standard
- Ball seat PTFE
- Integrated stainless steel mounting inserts
- Z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Interface module for position feedback sensor with LED (PNP, NPN and NAMUR)
- Manual spring return lever "Dead man" (DN10-25)
- Pneumatic or electric actuators from GF
- Individual configuration of the valve possible
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 167546308 EPDM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with butt fusion spigots long PE100 PE100, SDR17.6 metric · Product code 167546308 EPDM |
| 167546309 EPDM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with butt fusion spigots long PE100 PE100, SDR17.6 metric · Product code 167546309 EPDM |
| 167546310 EPDM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with butt fusion spigots long PE100 PE100, SDR17.6 metric · Product code 167546310 EPDM |
| 167546318 FKM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with butt fusion spigots long PE100 PE100, SDR17.6 metric · Product code 167546318 FKM |
| 167546319 FKM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with butt fusion spigots long PE100 PE100, SDR17.6 metric · Product code 167546319 FKM |
| 167546320 FKM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with butt fusion spigots long PE100 PE100, SDR17.6 metric · Product code 167546320 FKM |
