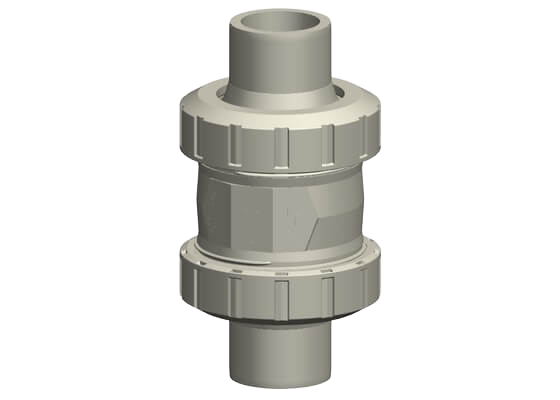

Check valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-H / bez silikonu, čištěný
- Konstruováno pro snadnou montáž a demontáž
- Bez vibrací i ve vysokých průtočných rychlostech
- Tvar zpětného kužele pro optimalizovaný průtok, dvojité uložení
- Instalační pozice vertikální
- Stavební délka shodná s kulovými kohouty typ 546
- Z-rozměr, vložné díly a převlečné matice nejsou kompatibilní s typem 360
Product variants
| Product code | d [mm] | DN [mm] | PN 1 [bar] | kv-value (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167561242 EPDM | 20 | 15 | 10 | 180 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561242 EPDM |
| 167561243 EPDM | 25 | 20 | 10 | 380 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561243 EPDM |
| 167561244 EPDM | 32 | 25 | 10 | 460 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561244 EPDM |
| 167561245 EPDM | 40 | 32 | 10 | 850 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561245 EPDM |
| 167561246 EPDM | 50 | 40 | 10 | 1080 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561246 EPDM |
| 167561247 EPDM | 63 | 50 | 10 | 1670 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561247 EPDM |
| 167561248 EPDM | 75 | 65 | 10 | 2950 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561248 EPDM |
| 167561249 EPDM | 90 | 80 | 10 | 3600 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561249 EPDM |
| 167561250 EPDM | 110 | 100 | 10 | 4150 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561250 EPDM |
| 167561252 FKM | 20 | 15 | 10 | 180 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561252 FKM |
| 167561253 FKM | 25 | 20 | 10 | 380 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561253 FKM |
| 167561254 FKM | 32 | 25 | 10 | 460 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561254 FKM |
| 167561255 FKM | 40 | 32 | 10 | 850 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561255 FKM |
| 167561256 FKM | 50 | 40 | 10 | 1080 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561256 FKM |
| 167561257 FKM | 63 | 50 | 10 | 1670 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561257 FKM |
| 167561258 FKM | 75 | 65 | 10 | 2950 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561258 FKM |
| 167561259 FKM | 90 | 80 | 10 | 3600 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561259 FKM |
| 167561260 FKM | 110 | 100 | 10 | 4150 |
Inquiry Enter quantityCheck valve type 561 PROGEF Plus, with butt fusion spigots IR-Plus, SDR11, metric · Product code 167561260 FKM |
