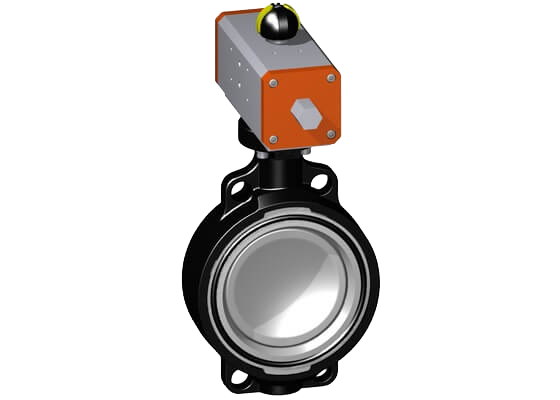

Butterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PVDF
- Control range 90°<)
- Overall length according to EN 558, ISO 5752
- Connecting dimension: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
Product variants
| Product code | d [mm] | DN [mm] | Size [inch] | PN | kv-value (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199240462 FKM | 63 | 50 | 2 | 10 | 740 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240462 FKM |
| 199240463 FKM | 75 | 65 | 2 1/2 | 10 | 1500 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240463 FKM |
| 199240464 FKM | 90 | 80 | 3 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240464 FKM |
| 199240465 FKM | 110 | 100 | 4 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240465 FKM |
| 199240466 FKM | 140 | 125 | 5 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240466 FKM |
| 199240467 FKM | 160 | 150 | 6 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240467 FKM |
| 199240468 FKM | 225 | 200 | 8 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240468 FKM |
| 199240469 FKM | 280 | 250 | 10 | 10 | 34000 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240469 FKM |
| 199240470 FKM | 315 | 300 | 12 | 5 | 50000 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240470 FKM |
| 199240522 PTFE | 63 | 50 | 2 | 10 | 740 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240522 PTFE |
| 199240523 PTFE | 75 | 65 | 2 1/2 | 10 | 1500 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240523 PTFE |
| 199240524 PTFE | 90 | 80 | 3 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240524 PTFE |
| 199240525 PTFE | 110 | 100 | 4 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240525 PTFE |
| 199240526 PTFE | 140 | 125 | 5 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240526 PTFE |
| 199240527 PTFE | 160 | 150 | 6 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240527 PTFE |
| 199240528 PTFE | 225 | 200 | 8 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240528 PTFE |
| 199240529 PTFE | 280 | 250 | 10 | 10 | 34000 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240529 PTFE |
| 199240530 PTFE | 315 | 300 | 12 | 5 | 50000 |
Inquiry Enter quantityButterfly valve type 240 SYGEF Standard, FC (Fail safe to close), without manual override · Product code 199240530 PTFE |
