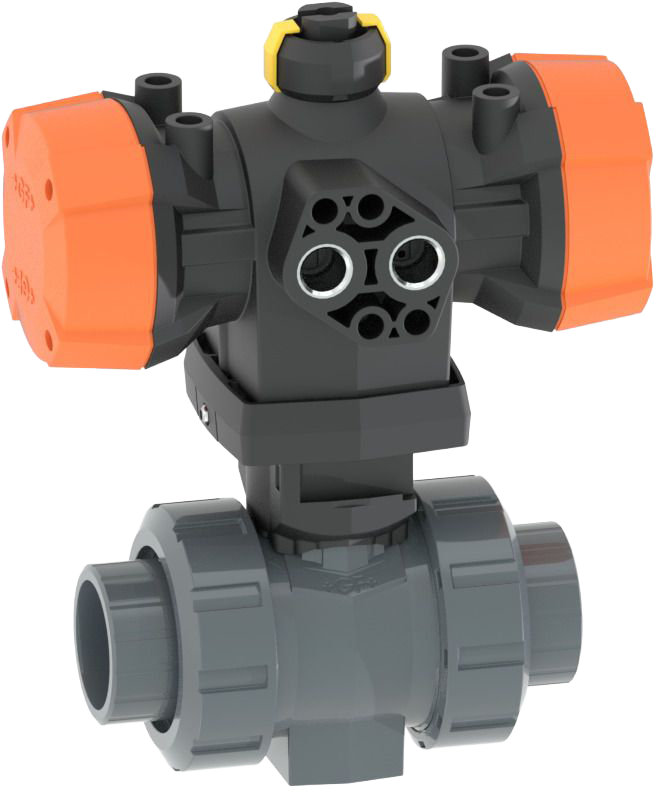

PVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
Full plastic solution (actuator housing made of PP-GF)
Visual position indicator
Integrated stainless steel mounting inserts
z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
Position feedback through double sensor with LED (PNP, NPN and NAMUR)
Positioner RPC, RPC D, RPC PID
Individual configuration of valves possible
Product variants
| Product code | d [mm] | DN [mm] | Velikost [inch] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199253060 EPDM | 16 | 10 | 3/8 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253060 EPDM |
| 199253082 EPDM | 16 | 10 | 3/8 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253082 EPDM |
| 199253061 EPDM | 20 | 15 | 1/2 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253061 EPDM |
| 199253083 EPDM | 20 | 15 | 1/2 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253083 EPDM |
| 199253084 EPDM | 25 | 20 | 3/4 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253084 EPDM |
| 199253085 EPDM | 32 | 25 | 1 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253085 EPDM |
| 199253086 EPDM | 40 | 32 | 1 1/4 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253086 EPDM |
| 199253087 EPDM | 50 | 40 | 1 1/2 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253087 EPDM |
| 199253088 EPDM | 63 | 50 | 2 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253088 EPDM |
| 199253089 EPDM | 75 | 65 | 2 1/2 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253089 EPDM |
| 199253090 EPDM | 90 | 80 | 3 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253090 EPDM |
| 199253091 EPDM | 110 | 100 | 4 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253091 EPDM |
| 199255140 FKM | 16 | 10 | 3/8 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199255140 FKM |
| 199253092 FKM | 16 | 10 | 3/8 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253092 FKM |
| 199255141 FKM | 20 | 15 | 1/2 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199255141 FKM |
| 199253093 FKM | 20 | 15 | 1/2 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253093 FKM |
| 199253094 FKM | 25 | 20 | 3/4 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253094 FKM |
| 199253095 FKM | 32 | 25 | 1 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253095 FKM |
| 199253096 FKM | 40 | 32 | 1 1/4 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253096 FKM |
| 199253097 FKM | 50 | 40 | 1 1/2 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253097 FKM |
| 199253098 FKM | 63 | 50 | 2 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253098 FKM |
| 199253099 FKM | 75 | 65 | 2 1/2 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253099 FKM |
| 199253100 FKM | 90 | 80 | 3 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253100 FKM |
| 199253101 FKM | 110 | 100 | 4 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FO (Fail safe to open) / With solvent cement sockets / PVC-U / ASTM / Without manual override 5.6 bar control pressure · Product code 199253101 FKM |
