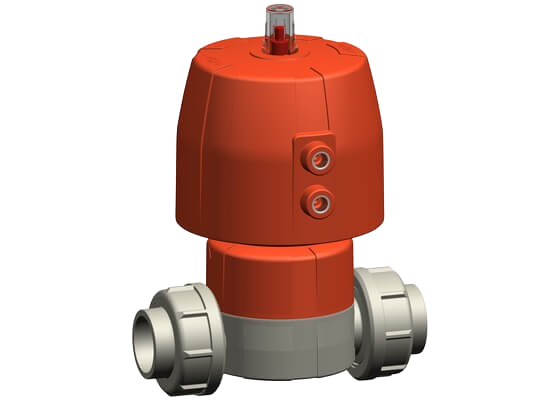

Diaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-H
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Jednoduchá montáž a demontáž
- Krátká celková stavební délka
- Pracovní tlak: oboustranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
Product variants
| Product code | d [mm] | DN [mm] | PN 1 [bar] | kv-value (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167684012 EPDM | 20 | 15 | 10 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684012 EPDM |
| 167684013 EPDM | 25 | 20 | 10 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684013 EPDM |
| 167684014 EPDM | 32 | 25 | 10 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684014 EPDM |
| 167684015 EPDM | 40 | 32 | 10 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684015 EPDM |
| 167684016 EPDM | 50 | 40 | 10 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684016 EPDM |
| 167684017 EPDM | 63 | 50 | 10 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684017 EPDM |
| 167684062 FKM | 20 | 15 | 10 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684062 FKM |
| 167684032 PTFE/EPDM | 20 | 15 | 10 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684032 PTFE/EPDM |
| 167684052 PTFE/FKM | 20 | 15 | 10 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684052 PTFE/FKM |
| 167684063 FKM | 25 | 20 | 10 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684063 FKM |
| 167684033 PTFE/EPDM | 25 | 20 | 10 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684033 PTFE/EPDM |
| 167684053 PTFE/FKM | 25 | 20 | 10 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684053 PTFE/FKM |
| 167684064 FKM | 32 | 25 | 10 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684064 FKM |
| 167684034 PTFE/EPDM | 32 | 25 | 10 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684034 PTFE/EPDM |
| 167684054 PTFE/FKM | 32 | 25 | 10 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684054 PTFE/FKM |
| 167684065 FKM | 40 | 32 | 10 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684065 FKM |
| 167684035 PTFE/EPDM | 40 | 32 | 10 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684035 PTFE/EPDM |
| 167684055 PTFE/FKM | 40 | 32 | 10 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684055 PTFE/FKM |
| 167684066 FKM | 50 | 40 | 10 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684066 FKM |
| 167684036 PTFE/EPDM | 50 | 40 | 10 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684036 PTFE/EPDM |
| 167684056 PTFE/FKM | 50 | 40 | 10 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684056 PTFE/FKM |
| 167684067 FKM | 63 | 50 | 10 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684067 FKM |
| 167684037 PTFE/EPDM | 63 | 50 | 10 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684037 PTFE/EPDM |
| 167684057 PTFE/FKM | 63 | 50 | 10 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), Union with fusion sockets metric · Product code 167684057 PTFE/FKM |
