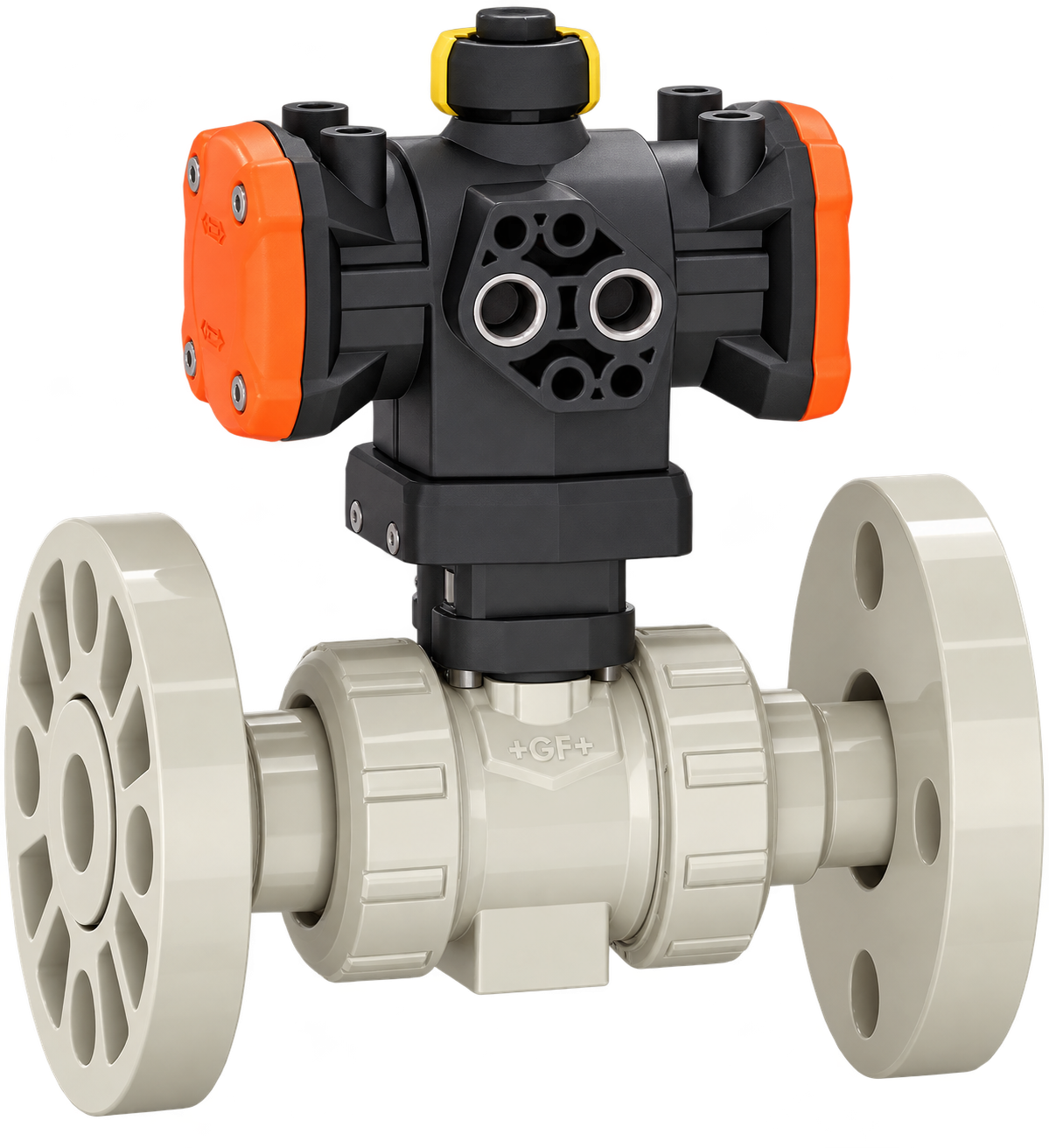

PROGEF Standard PP-H Ball valve type 546 Pro with PPA DA (Double Acting) With backing flanges PP-St ASME with PP-H Without manual override 5.6 bar control pressure
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
Full plastic solution (actuator housing made of PP-GF)
Visual position indicator
Integrated stainless steel mounting inserts
Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
Positioner RPC, RPC D, RPC PID
Individual configuration of the valve possible
Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
Product variants
| Product code | d [mm] | DN [mm] | Size [inch] | PN | kv-value (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199251769 EPDM | 75 | 65 | 2 1/2 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA DA (Double Acting) With backing flanges PP-St ASME with PP-H Without manual override 5.6 bar control pressure · Product code 199251769 EPDM |
| 199251770 EPDM | 90 | 80 | 3 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA DA (Double Acting) With backing flanges PP-St ASME with PP-H Without manual override 5.6 bar control pressure · Product code 199251770 EPDM |
| 199251771 EPDM | 110 | 100 | 4 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA DA (Double Acting) With backing flanges PP-St ASME with PP-H Without manual override 5.6 bar control pressure · Product code 199251771 EPDM |
| 199251779 FKM | 75 | 65 | 2 1/2 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA DA (Double Acting) With backing flanges PP-St ASME with PP-H Without manual override 5.6 bar control pressure · Product code 199251779 FKM |
| 199251780 FKM | 90 | 80 | 3 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA DA (Double Acting) With backing flanges PP-St ASME with PP-H Without manual override 5.6 bar control pressure · Product code 199251780 FKM |
| 199251781 FKM | 110 | 100 | 4 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA DA (Double Acting) With backing flanges PP-St ASME with PP-H Without manual override 5.6 bar control pressure · Product code 199251781 FKM |
