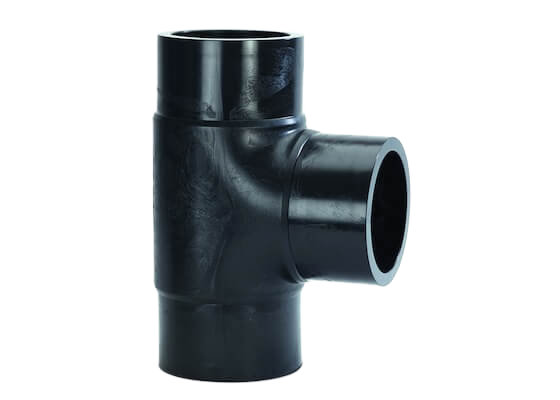

Tee 90° LS SDR11
Manufacturer
GEORG FISCHER +GF+
Product description
- 10 bar Gas / 16 bar Water
* Machined with welded pipes
** FM 1613 approved - PN 15
Product variants
| Product code | d [mm] | DN [mm] | PN | # | SDR | |
|---|---|---|---|---|---|---|
| 753201006 | 20 | 15 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201006 |
| 753201007 | 25 | 20 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201007 |
| 753201008 | 32 | 25 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201008 |
| 753201009 | 40 | 32 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201009 |
| 753201010 | 50 | 40 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201010 |
| 753201011 | 63 | 50 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201011 |
| 753201012 | 75 | 65 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201012 |
| 753201013 | 90 | 80 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201013 |
| 753201014 | 110 | 100 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201014 |
| 753201015 | 125 | 100 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201015 |
| 753201016 | 140 | 125 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201016 |
| 753201017 | 160 | 150 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201017 |
| 753201018 | 180 | 150 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201018 |
| 753201019 | 200 | 200 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201019 |
| 753201020 | 225 | 200 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201020 |
| 753201001 | 250 | 250 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201001 |
| 753200902 | 280 | 250 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200902 |
| 753200903 | 315 | 300 | 16 | ** | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200903 |
| 753200024 | 355 | 350 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200024 |
| 753200025 | 400 | 400 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200025 |
| 753200026 | 450 | 450 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200026 |
| 753200027 | 500 | 500 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200027 |
| 753200028 | 560 | 600 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200028 |
| 753200029 | 630 | 600 | 16 | - | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753200029 |
| 753201120 | 710 | 700 | 16 | * | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201120 |
| 753201121 | 800 | 800 | 16 | * | 11 |
Inquiry Enter quantityTee 90° LS SDR11 · Product code 753201121 |
