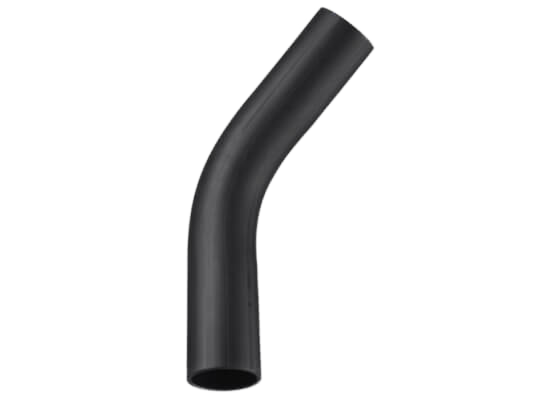

Bend 11° LS SDR11
Manufacturer
GEORG FISCHER +GF+
Product description
- 16 bar Water
- Made out of seamless pipe
- Bends made out of seamless pipe shall not be shortened
- Radius 1.5 x d
Product variants
| Product code | d [mm] | DN [mm] | PN | SDR | |
|---|---|---|---|---|---|
| 753091008 | 32 | 25 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091008 |
| 753091009 | 40 | 32 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091009 |
| 753091010 | 50 | 40 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091010 |
| 753091011 | 63 | 50 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091011 |
| 753091012 | 75 | 65 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091012 |
| 753091013 | 90 | 80 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091013 |
| 753091014 | 110 | 100 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091014 |
| 753091015 | 125 | 100 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091015 |
| 753091016 | 140 | 125 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091016 |
| 753091017 | 160 | 150 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091017 |
| 753091018 | 180 | 150 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091018 |
| 753091019 | 200 | 200 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091019 |
| 753091020 | 225 | 200 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091020 |
| 753091021 | 250 | 250 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091021 |
| 753091022 | 280 | 250 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091022 |
| 753091023 | 315 | 300 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091023 |
| 753091024 | 355 | 350 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091024 |
| 753091025 | 400 | 400 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091025 |
| 753091026 | 450 | 450 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091026 |
| 753091027 | 500 | 500 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091027 |
| 753091028 | 560 | 600 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091028 |
| 753091029 | 630 | 600 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091029 |
| 753091030 | 710 | 700 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091030 |
| 753091031 | 800 | 800 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091031 |
| 753091032 | 900 | 900 | 16 | 11 |
Inquiry Enter quantityBend 11° LS SDR11 · Product code 753091032 |
