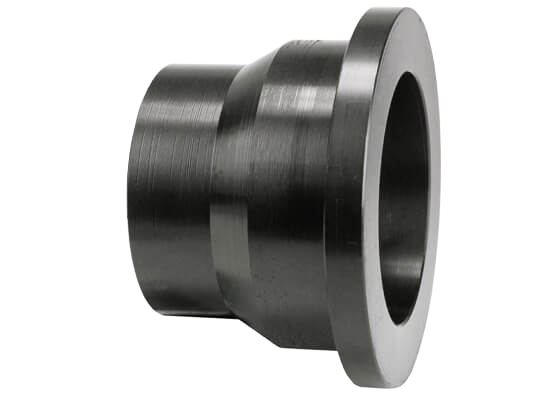

ecoFIT outlet flange adaptor PE100, d40-315mm / SDR11
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Suitable for wafer check valves Type 369
- Conventional butt-welding according to DVS 2207
Attention:
- In conjunction with Outlet flange adaptors, flange rings for socket systems must be used.
Product variants
| Product code | d [mm] | DN [mm] | PN | SDR | |
|---|---|---|---|---|---|
| 733808034 | 40 | 32 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808034 |
| 733808035 | 50 | 40 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808035 |
| 733808036 | 63 | 50 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808036 |
| 733808037 | 75 | 65 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808037 |
| 733808038 | 90 | 80 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808038 |
| 733808039 | 110 | 100 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808039 |
| 733808041 | 140 | 125 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808041 |
| 733808042 | 160 | 150 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808042 |
| 733808045 | 225 | 200 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808045 |
| 733808047 | 280 | 250 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808047 |
| 733808048 | 315 | 300 | 16 | 11 |
Inquiry Enter quantityecoFIT outlet flange adaptor PE100, d40-315mm / SDR11 · Product code 733808048 |
