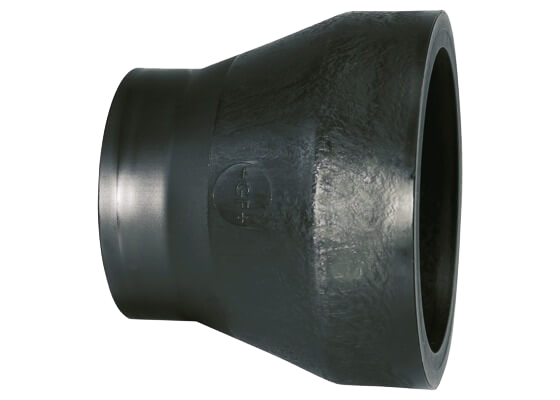

Reducer PE100, SDR17/17.6

Manufacturer

GEORG FISCHER +GF+

Product description

Model:

Product code	d [mm]	DN [mm]	d1 [mm]	FM	PN	#	SDR
753908713	50	40	40	IR	10	-	17
753908718	63	50	50	IR	10	-	17
753908904	75	65	40	IR	10	-	17
753908465	75	65	50	IR	10	-	17
753908464	75	65	63	IR	10	-	17
753908471	90	80	63	IR	10	-	17
753908470	90	80	75	IR	10	-	17
753908472	110	100	63	IR	10	-	17
753908477	110	100	75	IR	10	-	17
753908476	110	100	90	IR	10	-	17
753908738	125	100	110	IR	10	-	17
753908742	140	125	110	IR	10	-	17
753908743	140	125	125	IR	10	-	17
753908746	160	150	110	IR	10	-	17
753908748	160	150	140	IR	10	-	17
753908749	180	150	90	IR	10	-	17
753908750	180	150	110	IR	10	-	17
753908751	180	150	125	IR	10	-	17
753908752	180	150	140	IR	10	-	17
753908753	180	150	160	IR	10	-	17
753908931	200	200	160	IR	10	-	17
753908758	200	200	180	IR	10	-	17
753908938	225	200	110	IR	10	-	17
753908933	225	200	160	IR	10	-	17
753908762	225	200	180	IR	10	-	17
753908932	225	200	200	IR	10	-	17
753908765	250	250	160	-	10	-	17
753902801	250	250	180	-	10	-	17
753902802	250	250	200	-	10	-	17
753908768	250	250	225	-	10	-	17
753902804	280	250	200	-	10	-	17
753908772	280	250	225	-	10	-	17
753908773	280	250	250	-	10	-	17
753902807	315	300	200	-	10	-	17
753908776	315	300	225	-	10	-	17
753908777	315	300	250	-	10	-	17
753908778	315	300	280	-	10	-	17
753902835	710	700	500	-	10	*	17
753902836	710	700	560	-	10	*	17
753902837	710	700	630	-	10	*	17
753902838	800	800	560	-	10	*	17
753902839	800	800	630	-	10	*	17
753902840	800	800	710	-	10	*	17
753902841	900	900	630	-	10	*	17
753902842	900	900	710	-	10	*	17
753902843	900	900	800	-	10	*	17
753902845	1000	1000	800	-	10	*	17
753902844	1000	1000	710	-	10	*	17
753902846	1000	1000	900	-	10	*	17
