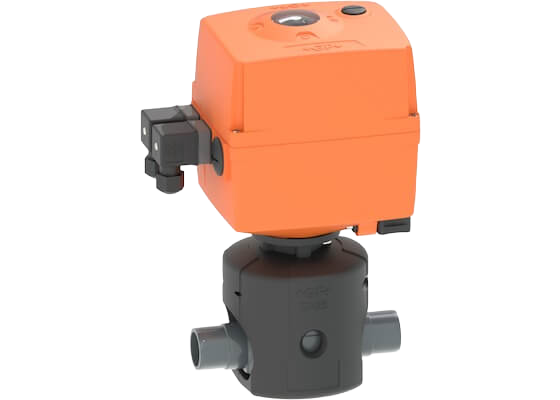

Diaphragm valve e-DIASTAR type 515 PVC-U 24 V, with solvent cement spigots metric
Manufacturer
GEORG FISCHER +GF+
Product description
Voltage 24V AC/DC
Multiturn Actuator
Heating element, position feedback (Open/Close)
Integrated manual emergency override
Integrated stainless steel mounting inserts
Other valve and actuator configurations available
Optional accessories: Fail-safe return unit, Monitoring board, Position controller, Profibus DP board
Product variants
| Product code | d [mm] | DN [mm] | PN 1 [bar] | |
|---|---|---|---|---|
| 161705014 EPDM | 32 | 25 | 10 |
Inquiry Enter quantityDiaphragm valve e-DIASTAR type 515 PVC-U 24 V, with solvent cement spigots metric · Product code 161705014 EPDM |
| 161705017 EPDM | 63 | 50 | 6 |
Inquiry Enter quantityDiaphragm valve e-DIASTAR type 515 PVC-U 24 V, with solvent cement spigots metric · Product code 161705017 EPDM |
| 161705034 PTFE/EPDM | 32 | 25 | 10 |
Inquiry Enter quantityDiaphragm valve e-DIASTAR type 515 PVC-U 24 V, with solvent cement spigots metric · Product code 161705034 PTFE/EPDM |
| 161705037 PTFE/EPDM | 63 | 50 | 6 |
Inquiry Enter quantityDiaphragm valve e-DIASTAR type 515 PVC-U 24 V, with solvent cement spigots metric · Product code 161705037 PTFE/EPDM |
