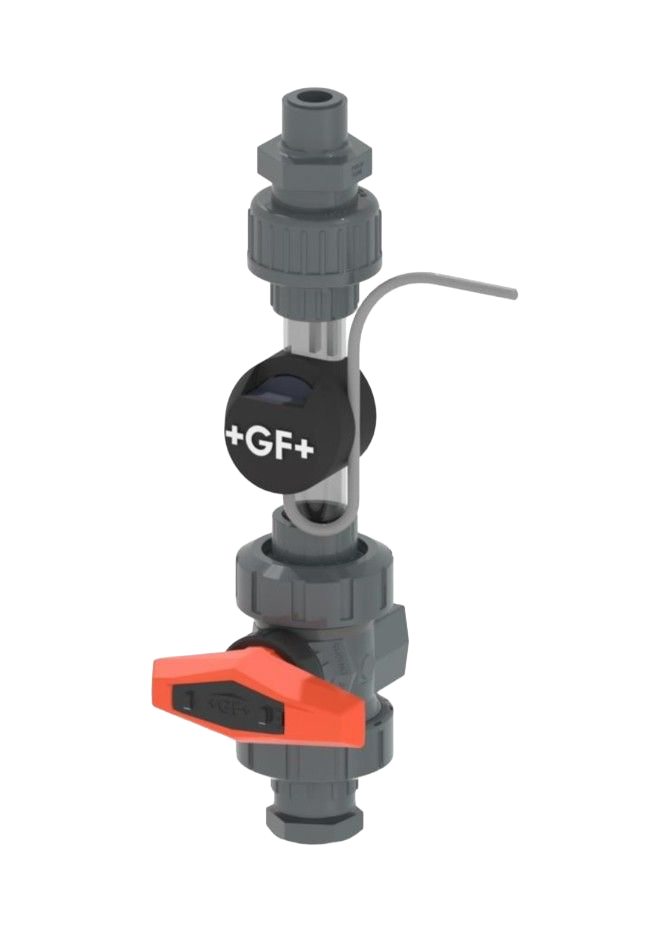

CONTAIN-IT Plus Leak Detection Sensor

The compact sensor unit is supplied pre-calibrated and pre-fabricated and is designed for easy installation in the monitoring room of double containment systems.

• Output: 3-Wire PNP (Normally Closed)

• Operation voltage: 10…35V DC

• Operation current: 0…200 mA

• Operation temperature*: 0°C up to 60°C (Sensor: -25°C up to 60°C)

• Applications: Permittivity of medium εr > 4,0

• LED-Indication: Green/Yellow

• International protection class: IP 68

• Housing material: PA

• Robustness Condensate: Integrated drop guide

• Material PVC-U: Union (EPDM), Ball valve 546 Pro (EPDM), transparent pipe

• Connection  monitoring room: R ½'' (End-Fitting CONTAIN-IT Plus)

• Connection flushing: Rp ½"

• Optional connection monitoring room and flushing: Only Transition Adapter NPT ½'' 700 244 691 (US-Systems)
