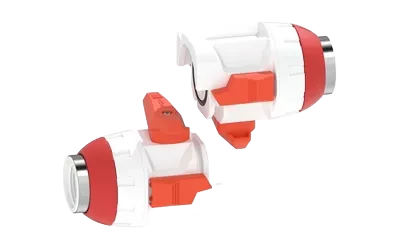

Quick Connect Valve 700 (QC7) Swiveled end-connection: NPT 1"
Hersteller
GEORG FISCHER +GF+
Produktbeschreibung
Ausführung:
Color coding: Blue for supply // Red for return
Protection cap
360° swiveled end-connections
Fluid loss: Approx 5,5cc.
Dual interlock lever mechanism
Valve body: PVDF
Lever: PP-GF30
Ball seat: PTFE
O-Rings: EPDM
Face seal: EPDM
Option:
Further connections on request.
Produktvarianten
| Produktcode | # | DN [mm] | Velikost [inch] | Di [mm] | Do [mm] | DE [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | Cv 100 [gal/min] | |
|---|---|---|---|---|---|---|---|---|---|---|
| 735911700 | NPT - Modrá | 25 | 1 | 28 | 42 | 70 | 10 | 570 | 39 |
Anfrage Menge eingebenQuick Connect Valve 700 (QC7) Swiveled end-connection: NPT 1" · Produktcode 735911700 |
| 735911702 | NPT - Červená | 25 | 1 | 28 | 42 | 70 | 10 | 570 | 39 |
Anfrage Menge eingebenQuick Connect Valve 700 (QC7) Swiveled end-connection: NPT 1" · Produktcode 735911702 |
